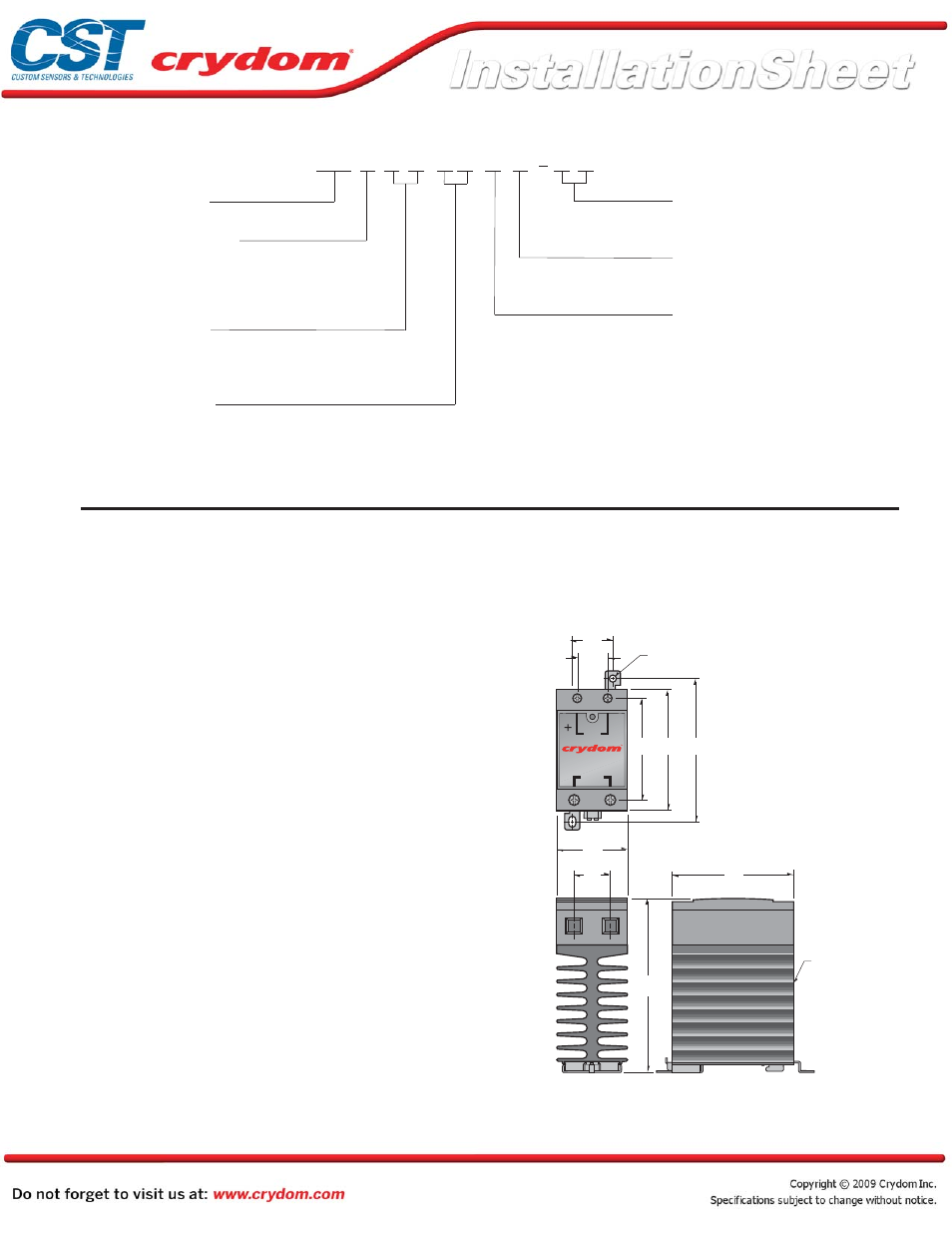

All dimensions are in inches (millimeters)

MECHANICAL SPECIFICATIONS

Transient Over Voltage (P OPTION)

Select "P" option for internal overvoltage protection. At the
presence of high voltage transient the output of the SSR will be
triggered on, and the transient will be passed on to the load circuit
This is a non-degrading method of protection that ensures that
other SSR benefits are maintained.

PROTECTION

Terminations

Wire Size

• Maximum wire size of AWG#12 (2.5mm) on
input and AWG#8 (4.8mm) output terminals.

Connections • Ensure that wires ends are stripped to a

minimum length of 0.4 inch (10 mm).

Recommended Screw Torque Range
• 5-6 in lb (0.6-0.7 Nm) on input and
10-15 in lb (1.1-1.7 Nm) on output terminations.

2

2

Over Current and Short Circuit

A solid state relay should be protected by a semiconductor fuse.
This type of fuse provides extremely fast opening of the circuit.
A fuse should be selected that has an I t let-through rating that
is less than the I t capability of the SSR, for the same duration.

3.0

(76.2)

2.5

(63.5)

3.0

(76.2)

3.5

(88.9)

4.3

(109.2)

.9

(22.9)

1.75

(44.5)

0.75

(19.1)

1.0

(25.4)

OUTPUT

INPUT

IN

P

U

T S T A T

U

S

MOUNTING
HOLE/SLOT
0.17 (4.3) DIA.

HEAT SINK:
BLACK ANODIZED
ALUMINUM

Earth Bonding (Grounding)

The CKR heatsink is equiped with an earth bonding screw as is
required for Class 1 Protection, in accordance with EN 60950
(VDE 0804).

© 2005 CRYDOM CORP, Specifications subject to change without notice.

Part Number

CMR =

CMR Series

Input (Control) Type

Package Style

D

=

3-32 Vdc (CMRD24)

A

=

90-140 Vrms

=

18-36 Vrms (suffix E)

Output Voltage

24

=

24 - 280

Vrms

48

=

48 - 530

Vrms

60

=

48 - 660

Vrms

Output Current

35

=

35 Amp

45

=

45 Amp

55

=

55 Amp

Note: For detailed electrical specifications see Crydom individual data sheets.

ORDERING INFORMATION

65

=

65 Amp

AC Control Range

Blank = 90-140 Vrms

E

=

18-36 Vrms

Control Mode

Blank = Zero Cross

10

=

Random

Integrated Overvoltage Protection

Blank = Not Included

P

=

Included

CMR

A

2

4

0

1

3

5

E

P

=

4-32 Vdc (CMRD48, CMRD60)

CMRINST
Rev. 081508
PAGE 2 OF 3
