PART 1 | 7. SUSPENDED CONFIGURATIONS
TTL 4-A, TTP 4-A, TTW 4-A
Now define the inclination angle and fix the speaker with the M6 screws provided, then clamp the M10 screws completely�

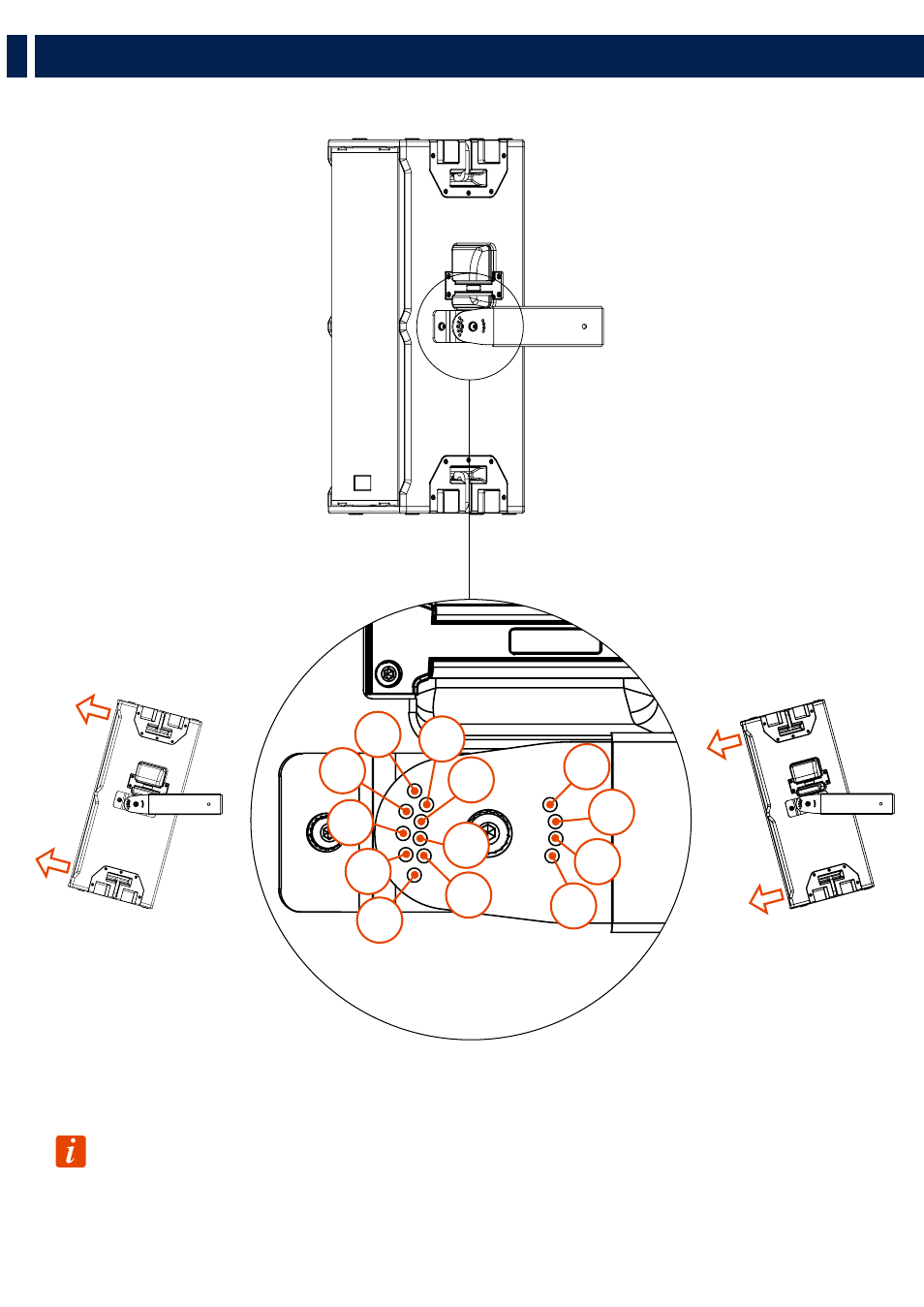

REFER TO THIS ILLUSTRATION TO DETERMINE THE INCLINATION ANGLE
IMPORTANT NOTE: For wall mounting use wall inserts (screw anchor or chemical) with the followings specs:
- min nominal share load 167 N
- min nominal traction load 3047 N
- safety factor equal or higher than 4
-20°
+25°
-10°
+15°
-5°
+30°
-25°
+5°
-30°
+20°
-15°
0°
+10°
POSITIVE VALUES
ARE FOR TILTING UPWARDS
NEGATIVES VALUES
ARE FOR TILTING DOWNWARDS
